In the final scope of the Java language course, AWT (Abstract Window Toolkit) is covered. This document summarizes the study materials briefly.

1. Introduction

Java provides a package called AWT for GUI programming.

import java.awt.*;

Let's explore the fundamental components.

1.1 Frame

A Frame provides a window for various applications. All components must be placed on top of the Frame, and at least one Frame is required. Every GUI program follows this process:

1. Create a Frame using new Frame().
2. Set the frame size using the setSize method.
3. Make the frame visible on the screen using the setVisible method.

A simple program can be written as follows:

import java.awt.*;

public class Main {
    public static void main(String[] args) {
        Frame f = new Frame("my Frame");
        f.setSize(300, 200);
        f.setVisible(true);
    }
}

1.2 Paint

The paint method is called when the Frame is displayed on the screen. The paint method is defined as follows and is executed in the following cases:

1. When the Frame is first displayed or its size is changed using setSize.
2. When the repaint method is called.
3. When the show method is called.

Typically, it is declared as:

public void paint(Graphics g){
  ...
}

This is because the Graphics class is the abstract base class for all graphic objects, containing all the settings and methods needed for drawing. Therefore, the paint method receives a Graphics object as an argument to perform the drawing.

1.3 Window Destroyer

In the previous example, there is no way to close the Frame. Let's explore how to close it.

First, declare a class as follows:

class WindowDestroyer extends WindowAdapter {
    public void windowClosing(WindowEvent e) {
        System.exit(0);
    }
}

Then, add this listener to the Frame f.

public class Main {
    public static void main(String[] args) {
        Frame f = new Frame("my Frame");
        f.setSize(300, 200);
        WindowDestroyer listener = new WindowDestroyer();
        f.addWindowListener(listener);
        f.setVisible(true);
    }
}

2. Methods for Drawing Shapes

Let’s review methods for drawing basic shapes.

2.1 Frame Constructor

Frame f = new Frame(window title);

The constructor of the Frame class initializes the frame using the string passed as a constructor argument and a GraphicsConfiguration object, which contains information about the graphics environment. However, this is typically not configured by the user, so only the window title is passed as a constructor argument.

2.2 setSize

This method sets the size of the component and is used as follows:

f.setSize(width, height);

2.3 setVisible

If the argument is true, the component is displayed on the screen; if false, it is hidden.

f.setVisible(true);
f.setVisible(false);

2.4 drawRect

The drawRect method is used to draw a rectangle and has the following signature:

public void drawRect(int x, int y, int width, int height)

Here, x and y are the coordinates of the top-left corner of the rectangle, and width and height are the width and height of the rectangle.

2.5 fillRect

The fillRect method fills a rectangle and is defined as follows:

public void fillRect(int x, int y, int width, int height)

The fill color of the rectangle is defined by the setColor method. The default color is black.

2.6 drawRoundRect

The drawRoundRect method draws a rectangle with rounded corners, defined as follows:

public void drawRoundRect(int x, int y, int width, int height, int arcWidth, int arcHeight)

Here, x and y are the coordinates of the top-left corner of the rectangle, width and height are the width and height, while arcWidth and arcHeight indicate the degree of rounding at the corners. arcWidth represents the rounded width, and arcHeight represents the rounded height.

2.7 fillRoundRect

The fillRoundRect method draws a rectangle with rounded corners filled with the color set by setColor, defined as follows:

public void fillRoundRect(int x, int y, int width, int height, int arcWidth, int arcHeight)

Its structure is similar to drawRoundRect.

2.8 DrawLine

This method draws a line from point (x1, y1) to point (x2, y2).

public void drawLine(int x1, int y1, int x2, int y2)

2.9 DrawOval

The drawOval method is used to draw an oval and is defined as:

public void drawOval(int x, int y, int width, int height)

In this method, x and y are not the center of the oval; they are the coordinates of the top-left corner of the rectangle that perfectly bounds the oval, while width and height are the dimensions of that rectangle.

Consider the following code:

import java.awt.*;
import java.awt.event.*;

class WindowDestroyer extends WindowAdapter {
    public void windowClosing(WindowEvent e) {
        System.exit(0);
    }
}

public class Main extends Frame {
    public Main(String str) {
        super(str);
    }

    public void paint(Graphics g) {
        g.drawLine(50, 50, 200, 200);
        g.drawOval(50, 50, 50, 30);
    }

    public static void main(String[] args) {
        Frame f = new Main("my Frame");
        f.setSize(500, 300);
        WindowDestroyer listener = new WindowDestroyer();
        f.addWindowListener(listener);
        f.setVisible(true);
    }
}

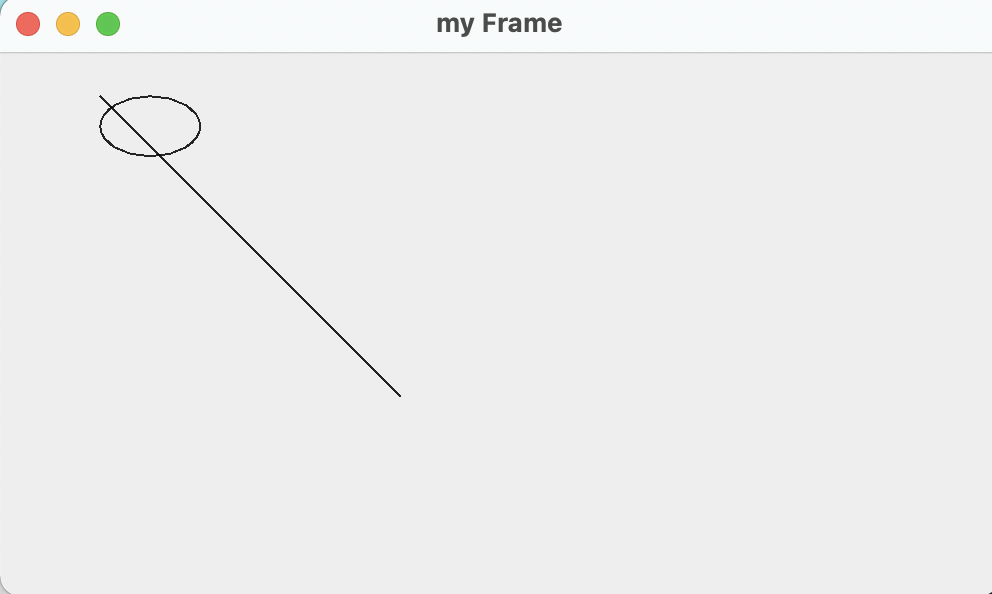

The result is as follows:

You can see that the starting point of the line (50, 50) is the top-left corner of the bounding rectangle for the oval, not its center.

2.10 FillOval

The fillOval method draws an oval filled with the color set by setColor (default is black) and has the same structure as drawOval.

public void fillOval(int x, int y, int width, int height)

2.11 DrawArc

The drawArc method draws an arc and is defined as follows:

public void drawArc(int x, int y, int width, int height, int startAngle, int arcAngle)

Here, x and y are coordinates of the top-left corner of the bounding rectangle for the arc, while width and height are the dimensions of that rectangle. startAngle is the starting angle of the arc, and arcAngle is the extent of the arc. The angle is measured from the positive x-axis in a clockwise direction.

The example is more intuitive with fillArc.

2.12 FillArc

The fillArc method draws an arc filled with the color set by setColor (default is black) and follows the structure of drawArc.

public void fillArc(int x, int y, int width, int height, int startAngle, int arcAngle)

Consider the following paint function:

public void paint(Graphics g) {
    g.drawLine(50, 50, 200, 200);
    g.fillArc(50, 50, 100, 70, 60, 200);
}

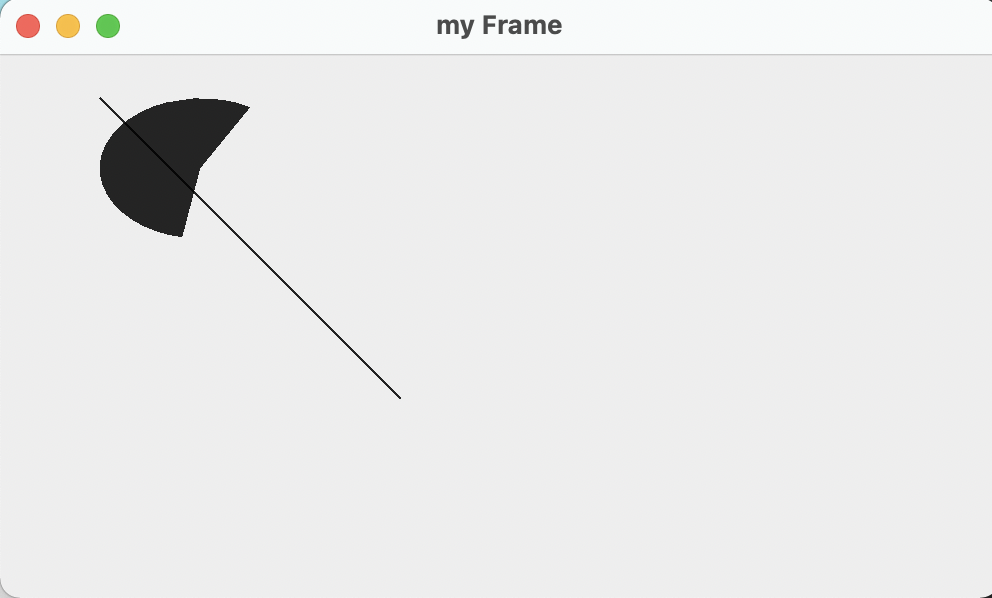

In this case, the top-left corner of the bounding rectangle for the arc is (50, 50), starting from 60 degrees with a central angle of 200 degrees.

2.13 DrawPolygon

This method draws a polygon. Arrays x and y store coordinates of each vertex, and n is the number of vertices.

public void drawPolygon(int[] x, int[] y, int n)

It connects points (x[i-1], y[i-1]) to (x[i], y[i]) linearly for n points.

For example, create the following paint function:

public void paint(Graphics g) {
    g.drawLine(50, 50, 200, 200);
    int x[] = {50, 100, 100, 50};
    int y[] = {50, 50, 100, 100};
    g.drawPolygon(x, y, 4);
}

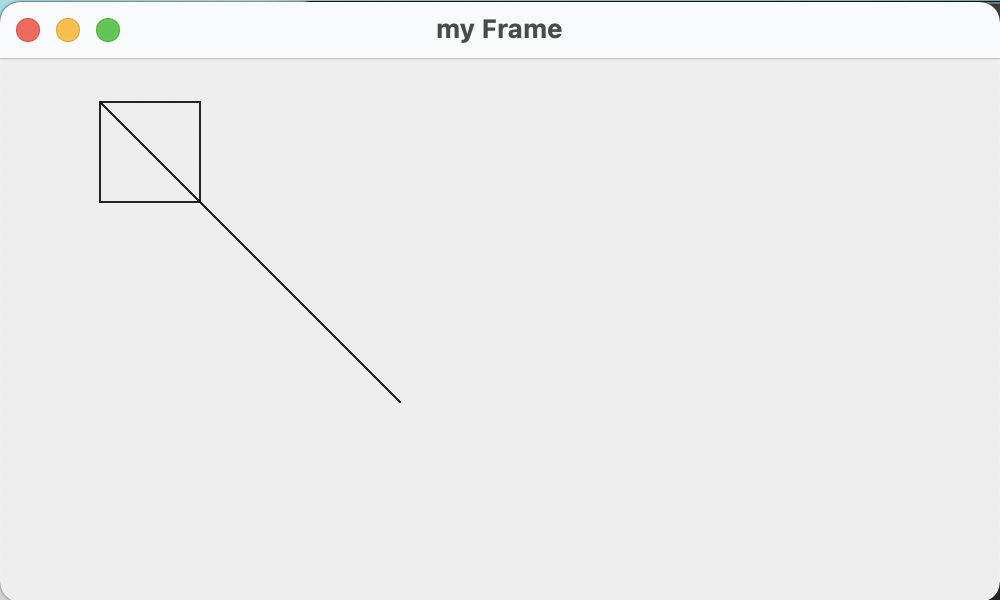

This will produce the following shape:

If the number of vertices is changed? Only the first n elements of the arrays x and y will be used.

public void paint(Graphics g) {
    g.drawLine(50, 50, 200, 200);
    int x[] = {50, 100, 100, 50};
    int y[] = {50, 50, 100, 100};
    g.drawPolygon(x, y, 3);
}

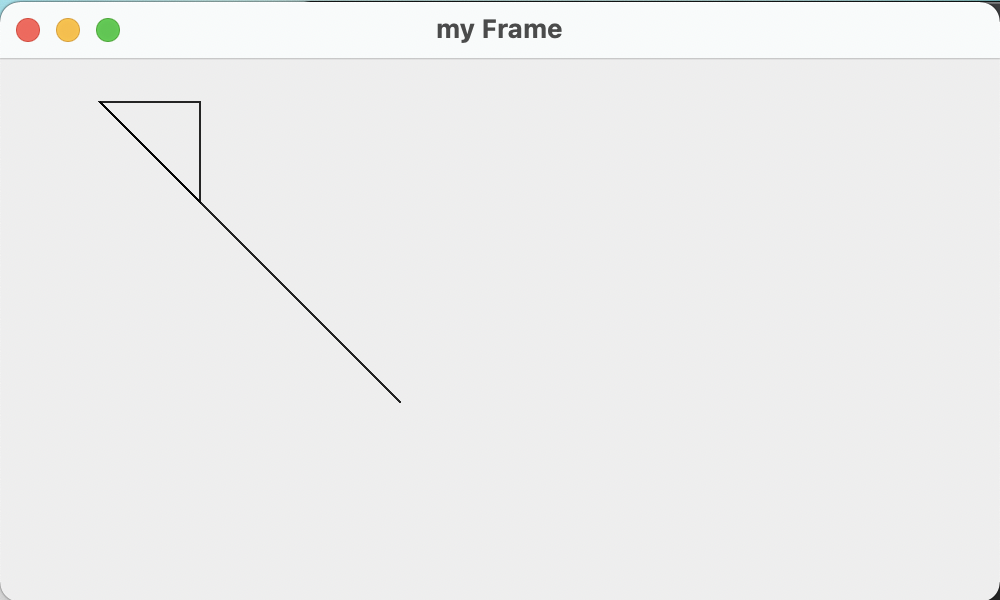

Setting three vertices produces the following result:

If the number of specified vertices exceeds the size of the arrays x and y, an error will occur, such as attempting to specify 5 when the size is 4.

2.14 FillPolygon

This method draws a polygon filled with color and has the same structure as drawPolygon.

public void fillPolygon(int[] x, int[] y, int n)

3. Methods for Drawing Strings

3.1 DrawString

This method is used to draw a string. The position of the string is at the bottom-left corner of the string itself.

public void drawString(String str, int x, int y)

For instance, using the following paint function:

public void paint(Graphics g) {
    g.drawLine(50, 50, 200, 200);
    g.drawString("I am a witch", 50, 50);
}

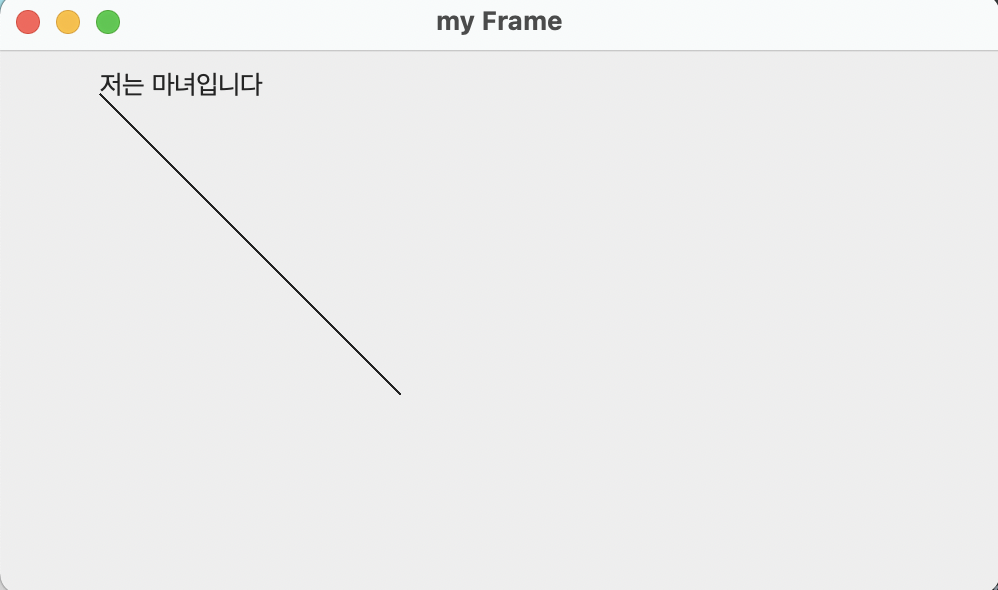

This will yield the following result:

3.2 SetFont

This method sets the font used to draw strings.

public void setFont(Font f)

Since setFont is a method of the Graphics class, it can be used as g.setFont(new Font("Serif", Font.BOLD, 20)).

The Font class represents fonts. The constructor for the Font class is as follows:

public Font(String name, int style, int size)

Here, name is the font name, style is the font style, and size is the font size. The style uses these constants:

Font.PLAIN
Font.BOLD
Font.ITALIC
Font.BOLD + Font.ITALIC

Names such as "Serif" and "Sans" can be used as shown above.

4. Methods for Drawing Images

4.1 GetImage

This method retrieves an image based on the file location. It is used via getDefaultToolkit().

Image img = Toolkit.getDefaultToolkit().getImage("image path");

4.2 DrawImage

This method is used for drawing images.

public boolean drawImage(Image img, int x, int y, ImageObserver observer)

Often this is used as the observer. x and y determine the top-left corner of the image.

Alternatively, it can be used as follows:

public boolean drawImage(Image img, int x, int y, int width, int height, ImageObserver observer)

Here, this is also the observer. width and height represent the dimensions of the image.

This can be utilized as shown below:

public void paint(Graphics g) {
    g.drawLine(50, 50, 200, 200);
    Image img = Toolkit.getDefaultToolkit().getImage("/Users/kimsunghyun/IdeaProjects/study/src/witch.jpeg");
    g.drawImage(img, 50, 50, 100, 100, this);
}

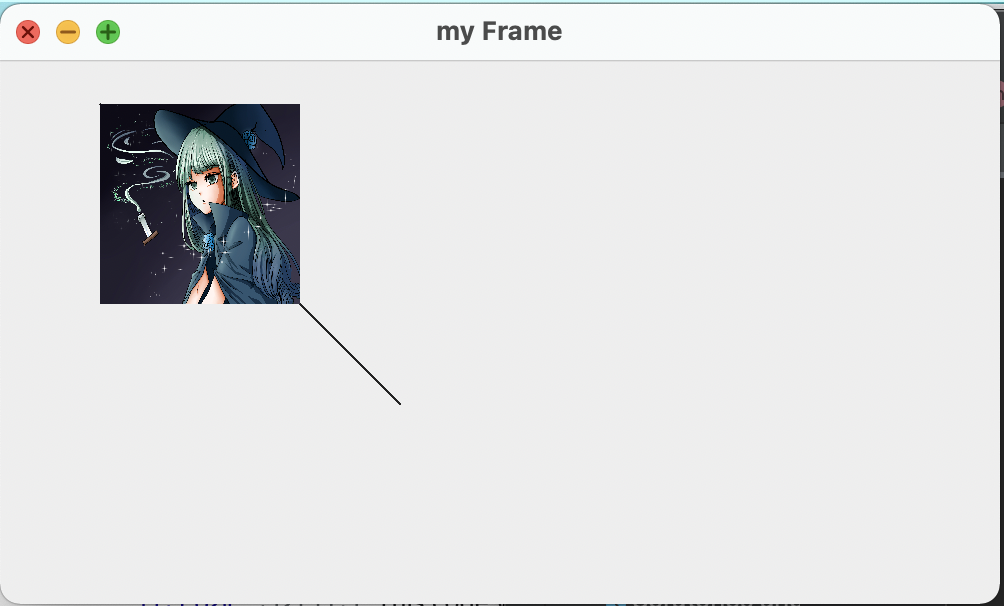

This results in my profile picture, as illustrated below. Comparing the position of the line, you can see that x and y are indeed the top-left corner of the image.

5. Size Related Methods

5.1 GetSize

This method returns the size of the frame.

public Dimension getSize()

5.2 GetInsets

This method returns the size of the frame's borders, containing values for bottom, left, right, and top.

public Insets getInsets()

5.3 Usage

public void paint(Graphics g) {
    Dimension d = getSize();
    Insets in = getInsets();
    g.drawString("d.width  : " + d.width, 10, 40);
    g.drawString("d.height : " + d.height, 10, 60);
    g.drawString("in.left  : " + in.left, 10, 80);
    g.drawString("in.right : " + in.right, 10, 100);
    g.drawString("in.top   : " + in.top, 10, 120);
    g.drawString("in.bottom: " + in.bottom, 10, 140);
}

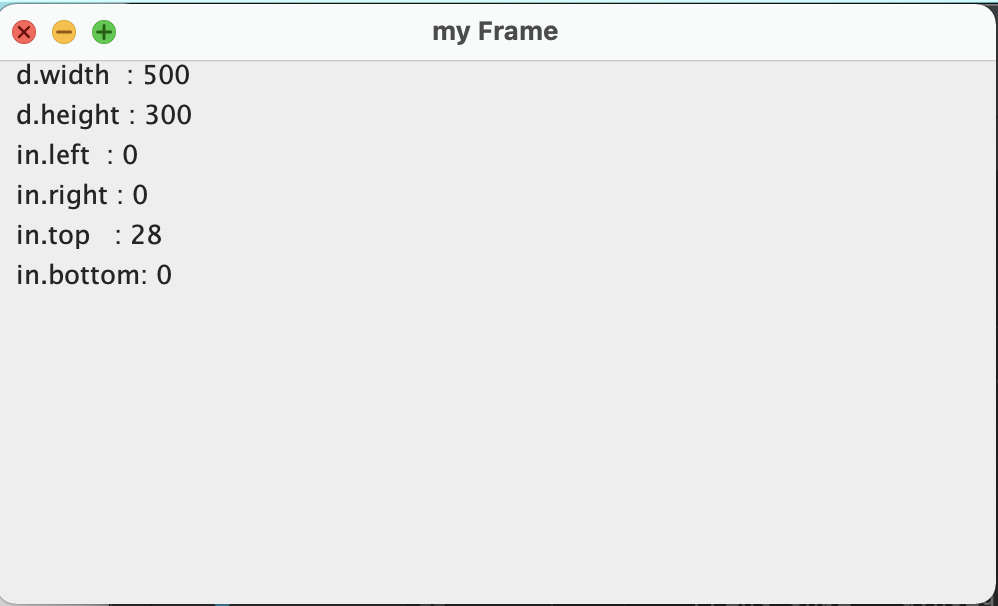

This way, you can determine the sizes of the frame and borders. The result on my computer is as follows.

6. Color Related Methods

6.1 SetColor, SetBackground

These methods determine the color of shapes and the background.

public void setColor(Color c)
public void setBackground(Color c)

setColor is a method of the Graphics class, so it can be used as g.setColor(Color.pink). setBackground is a method of the Frame class, allowing for use as f.setBackground(Color.red) or within the Frame class context as setBackground(Color.red).

The Color class represents colors. The constructor for the Color class is as follows:

public Color(int r, int g, int b)

It constructs a color from values of r, g, and b, each ranging from 0 to 255.

6.2 GetXORMode

This method alternates the current color of the graphic context with the newly specified color. In XOR mode, the pixels alternate between the current color and the newly specified XOR alternate color.

public void paint(Graphics g) {
    g.setColor(Color.pink);
    g.fillRect(10, 10, 200, 100);
    g.setXORMode(Color.blue);
    g.fillRect(100, 50, 200, 100);
}

6.3 Usage - Moving Drawings

Using XOR mode, a drawing can be erased and redrawn, creating the appearance of movement. By drawing a picture at a specific position, waiting briefly, erasing the displayed picture, then redrawing at a slightly shifted new position, the image appears to move right.

public void paint(Graphics g) {
    Image img = Toolkit.getDefaultToolkit().getImage("/Users/kimsunghyun/IdeaProjects/study/src/HAEMA.GIF");
    Dimension d = getSize();
    int x;
    g.setXORMode(Color.white);
    for (x = 10; x < d.width - 100; x += 10) { // move haema to right direction
        g.drawImage(img, x, 30, 100, 200, this); // draw haema
        for (int j = 0; j < 30000; j++);
        g.drawImage(img, x, 30, 100, 200, this); // delete haema drawn
    }
    g.drawImage(img, x, 30, 100, 200, this);
}

7. Panel

A Panel acts as a container within a Frame, effectively inheriting from java.awt.Container. Components can be added using the add method, and methods like setSize, setLocation, and setBackground are applicable.

After creating a Frame, it can incorporate Panels using its add method. The following demonstrates adding a yellow panel to a pink frame:

public static void main(String[] args) {
    Frame f = new Main("my Frame");
    Panel p = new Panel();
    f.setSize(500, 300);
    f.setBackground(Color.pink);
    f.setLayout(null);
    p.setSize(100, 100);
    p.setBackground(Color.yellow);
    f.add(p);
    f.addWindowListener(new WindowDestroyer());
    f.setVisible(true);
}

8. Layouts

The previously mentioned setLayout(null); indicates that no layout manager will be used. Other layout managers include:

8.1 FlowLayout

This arranges components from left to right by default, centered. If a component’s size exceeds that of the Frame, it wraps to the next line. It uses components' preferred sizes, which can be modified using the constructor.

f.setLayout(new FlowLayout());

The constructor parameter can define the alignment: FlowLayout.LEFT, FlowLayout.RIGHT, or FlowLayout.CENTER.

Additionally, the pack() method adjusts the Frame's size to accommodate the components it contains.

8.2 BorderLayout

This is the default layout for Frames and dialogs. It divides the Frame into five areas—NORTH, SOUTH, EAST, WEST, and CENTER. When placing components, the position can be set as the second argument of the add method.

f.setLayout(new BorderLayout());

This can also define the spacing between components via constructor parameters:

f.setLayout(new BorderLayout(hgap, vgap));

Usage with the Frame's add method is as follows:

f.add(btn1, BorderLayout.NORTH);
f.add(btn2, BorderLayout.SOUTH);
f.add(btn3, BorderLayout.EAST);
f.add(btn4, BorderLayout.WEST);
f.add(btn5, BorderLayout.CENTER);

8.3 GridLayout

This layout arranges components into rows and columns. Think of it as dividing the frame into a grid to place components sequentially from top to bottom and left to right. Various parameters can be specified in the constructor.

setLayout(new GridLayout());
setLayout(new GridLayout(rows, cols));
setLayout(new GridLayout(rows, cols, hgap, vgap));

The add method arranges components automatically.

8.4 CardLayout

This layout allows multiple screens to be viewed in a slide-like manner. One can add multiple screens to the layout and show desired containers sequentially.

To show a specified screen, supply it as a parameter to the show method:

public static void main(String[] args) {
    Frame f = new Main("my Frame");
    CardLayout card = new CardLayout();
    f.setLayout(card);
    Panel p1 = new Panel();
    p1.setBackground(Color.pink);
    Panel p2 = new Panel();
    p2.setBackground(Color.yellow);
    Panel p3 = new Panel();
    p3.setBackground(Color.CYAN);
    f.add(p1, "1");
    f.add(p2, "2");
    f.add(p3, "3");

    class Handler extends MouseAdapter {
        public void mouseClicked(MouseEvent e) {
            card.next(f);
        }
    }

    p1.addMouseListener(new Handler());
    p2.addMouseListener(new Handler());
    p3.addMouseListener(new Handler());
    f.addWindowListener(new WindowDestroyer());
    f.setSize(500, 300);
    f.setVisible(true);
    card.show(f, "1");
}
